EDAC Rack & Panel Connectors
Features
• UL Recognized
• .150 (3.81) Contact Spacing x .130 (3.30) or .150 (3.81) Row
Spacing with Staggered Grid
• Plug and Receptacle in 20, 38, 56, 90 or 120 Contact Sizes
• Edacon Hermaphroditic Contact Mating Design
• Contact Termination Options Include: Crimp, P.C. Tail, Wire Hole
and Wire Wrap
• Mating and Unmating Simplified with use of Actuating Screws
• Optional Covers with Side or Top Entry Cable Clamp in Plastic or
Metal Material Available for All Connector Sizes
• Versatile Metal Cover Design Permits Assembly and Disassembly
after Cabling is Complete plus Cable Entry Style Flexibility
• Actuating Screws, Locknuts, Polarizing Hardware, Covers and
Contacts Suitable for either Plug or Receptacle
• Polarizing Hardware Adjustable for 288 Mating Combinations
• Tools Available for Contact Installation, Removal and Crimping
and Polarizing Changes
Specifications
• Insulator Material: Diallyl Phthalate or Thermo plastic
Polyester, UL94V-0, Colour: Green, or Polycarbonate, Colour: Grey
• Contact Material: Phosphor Bronze Alloy CA-510
• Contact Plating: Gold over Nickel for Entire Contact
• Cover Material: Polycarbonate, Colour: Green, or DieCast Zinc,
Finished with Grey Enamel Paint
• Current Rating: 8.5 Amperes
• Contact Resistance: 10 Milliohms Maximum
• Dielectric Withstanding Voltage: 2000 V AC rms at Sea Level
• Insulation Resistance: 5000 Megohms Minimum
• Operating Temperature: -65 to +125 Degrees C
• Insertion and Withdrawal Force: 2 to 16 oz (0.56 to 4.45 N) per
Contact Position

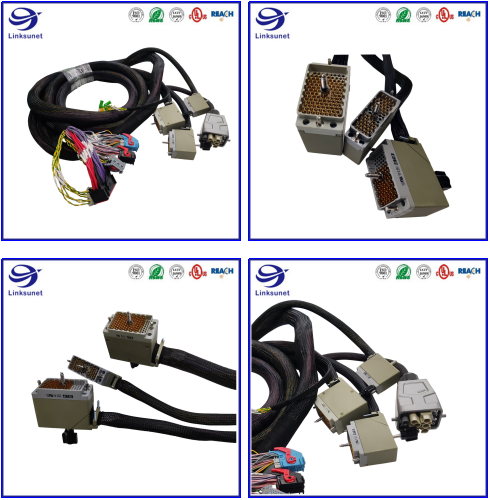

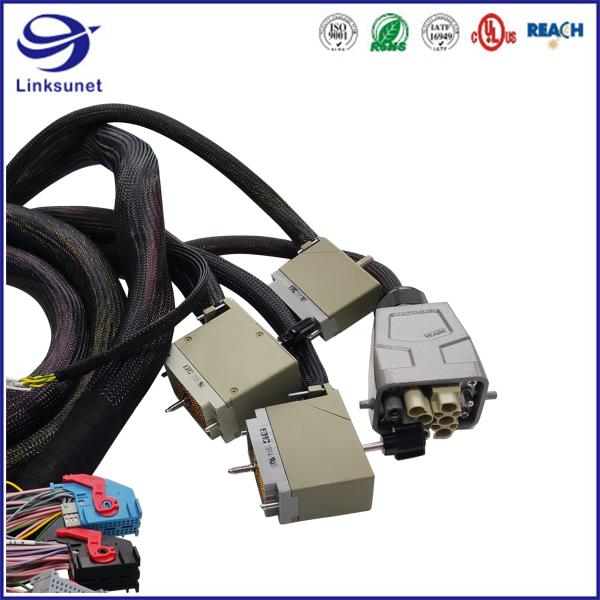

| Custom Wiring Harness with 516 Serie Rack and Panel Connectors |
| 1 | 516-020-000-302 | 516-020-000-301 | 516-020-000-202 | 516-020-000-201 | 20PIN |
| 2 | 516-038-000-302 | 516-038-000-301 | 516-038-000-202 | 516-038-000-201 | 38PIN |
| 3 | 516-056-000-302 | 516-056-000-301 | 516-056-000-202 | 516-056-000-201 | 56PIN |
| 4 | 516-090-000-302 | 516-090-000-301 | 516-090-000-202 | 516-090-000-201 | 90PIN |
| 5 | 516-120-000-302 | 516-120-000-301 | 516-120-000-202 | 516-120-000-201 | 120PIN |
FAQ
Wire &Cable Reference
| Wire & cable information |
| German standard |
| FLRY-B | 0.35/0.5/0.75/1.5/2.5/4.0 |
| Japanese standard |
| TXL | 22AWG/20AWG/18AWG/16AWG/14AWG |
| GXL | 22AWG/20AWG/18AWG/16AWG/14AWG |
| UL |
| UL1007 | UL1061 | UL1015 |
| UL1569 | UL3239 | UL1430 |
| UL | | |
| UL2464 | UL20276 | UL2586 |
| UL2733 | | |
| Jacket material |
| PVC | PE | TPU |
| PU | TPE | XLPE |
| PUR | PTFE | Silicon rubber |
| | |
| External protective materials |
| PA flexible bellows |
| PP bellows |
| TPE Nylon Braided reticulated tube |
| Electrical tape |
| High temperature resistant flannel tape |
| PVC sleeve |
| Heat shrinkable tube |
| FAQ |
| MOQ | 5-100000PCS |
| LEAD TIME | Production 2-3week |
| Transportation | FEDEX.UPS.DHL.SF.transportation line |
| Payment method | T/T,PAYPAL,ALIPAY,ALIBABA |
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must charge
the sample expense, when under you order form, we return the sample
expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
