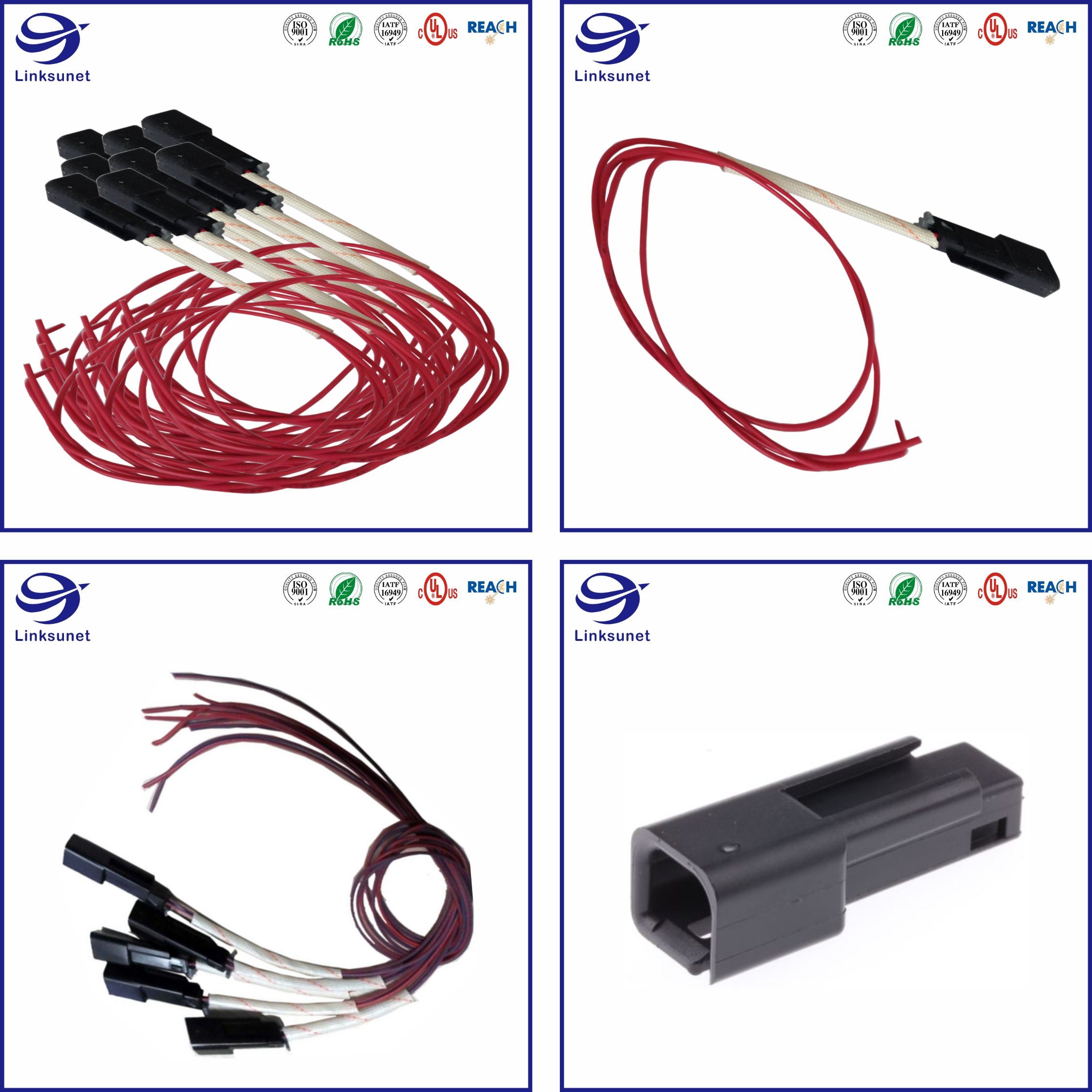

Aptiv (formerly Delphi) Metri-Pack 150 Series consists of connectors designed to meet or exceed

the requirements for most marine, appliance, and industrial control applications. The 150 Series

provides small overall dimensions, low energy & low voltage capabilities, and excellent resistance

to temperature, chemicals, and abrasion. Metri-Pack 150 Connectors have a 1.5mm blade width,

3.5mm or 6.0mm centerline spacing, 0.35 - 1.0mm2 cable range, current capabilities from 0 to 14A,

<10mΩ@ 20mV resistance, <10.0mV/amp voltage drop, and an operating temperature range of

-40°C to 125°C.

SPECIFICATIONS

• Cable Range: 0.35 - 1.0 mm2 (sealed and unsealed)
• Current Range: 0 - 14A
• Operating Temperature -40°C to + 125°C
• Resistance: <10 mΩ@ 20mV

• Voltage Drop: <10.0mV/amp
• Centerline Spacing: 3.5mm (unsealed); 6.0mm (sealed)
• Blade Width: 1.5mm

FEATURES

• Connector Position Assurance (CPA)
• Terminal Position Assurance (TPA)
• 14A continuous maximum current rating

• Small overall dimensions
• Low energy, low voltage capability
• Excellent resistance to temperature, chemicals and abrasion

FAQ

Standard Confirm

Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer

Requirements and Acceptance for Cable and

Wire Harness Assemblies

Sample L/T,MOQ

We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks

when under you order form,we return the delivery(usually)

sample expense MOQ: Depends on the main material

Wire &Cable Customized

High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6

Apha, Belden, 3M, or Customer specified weeks

Mid-ranking : Ltk, Wonderful, Cableplus,

Honglin

Packing Connector

Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,

Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.

Q How can I get the sample to check your quality?

After price confirmation, you can require for samples to check our product’s quality. We are must charge

the sample expense, when under you order form, we return the sample expense.

Q What can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please

tell us in your email so that we will regard you inquiry priority.

Q What is your term of delivery?

We accept EXW, FOB Shanghai . You can choosethe one which is the most convenient or cost effective

for you.

Q What about the lead time for the mass production?

Honestly, it depends on the order quantity and the season you place the order.
