LF07WBP-3S(31) LF07WBP-3P(31) LF07WBP-6S(31) LF07WBP-6P(31)
LF10WBP-4S(31)
LF10WBP-4P(31) LF10WBP-12S(31) LF10WBP-12P(31) LF13WBP-20S
LF13WBP-20P
LF13WBP-11S LF13WBP-11P
1. Ease of shielded termination and connector assembly
All components are self-aligning and do not require complex
assembly tooling. The shield of the cable is connected with the
metal housing of the connector using simple shielding clamp,
supplied with the connector. (Fig. 2)
2. Water and dust protected
The LF series is a rugged, waterproof connector series that is IP67
and IP68 rated in the mated condition.
IP67 : Left in water at a depth of 1 m for 30 minutes IP68 : Left
in water at a depth of 2 m for 14 days
3. Simplified assembly procedure
No use of screws makes wiring and mounting easier.
4. Bayonet lock
Short turn bayonet lock assures secure vibration resistant mating
of the connectors. (Fig. 3)
5. Acquired safety standard
4 pos. is 10A and meets safety standards (TÜV) Also 3- and 4-pos.
have acquired the UL standard.
6. High current rating capacity

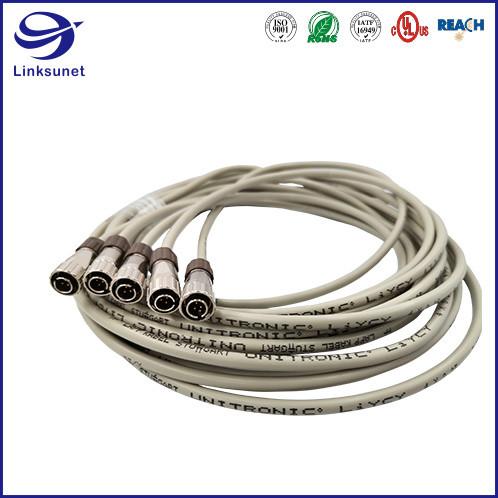

| Telecommunications Wire Harness with LF Zinc Alloy Bayonet Lock PPS
Connectors |
| Categories | Connectors, Interconnects |
| Circular Connectors |
| Manufacturer | Hirose Electric Co Ltd |
| Series | LF |
| Part Status | Active |
| Connector Type | Jack, Male Pins |
| Number of Positions | 3 / 4 / 6 / 11 / 12 / 20 |
| Shell Size - Insert | 7 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | Keyed |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Brown, Silver |
| Ingress Protection | IP67/68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Clamp, Strain Relief |
| Shielding | Shielded |
| Current Rating (Amps) | 5A |
| Voltage Rating | 125VAC, 175VDC |
| Operating Temperature | -25°C ~ 85°C |
| Backshell Material, Plating | Zinc Alloy, Nickel |
| Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Applications | Industrial, Telecommunications |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must charge
the sample expense, when under you order form, we return the sample
expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
