Molex KK® system
The Molex KK® interconnect system can be used to build thousands of
different configurations.
This connector system provides a lot of polarization
characteristics to ensure correct insertion
in applications. KK® housing has offset plug access holes that
provide 180 ° polarization,
allowing both power and signal to pass through the same enclosure.
The connector can also
be inserted with optional polarization keys and pins to ensure that
the connector and the
housing are inserted in one direction only. In addition, the system
also has customizable KK®
connector, which can provide more polarity selection and design
configuration, such as plug
with invalid pin, custom pin length, bent PC solder tail and
various tin or gold plating options.
Molex compatible reflow process (RPC) plugs, including signal and
power series, can withstand
welding temperatures up to 260 ° C. The signal application KK® 254 connector provides up to
5A current and 250V voltage for each circuit in a 2.54 mm pitch
package. Power application
KK® 396 connector can provide 13A current and 600V voltage for each
circuit in a 3.96 mm
spacing package. KK® RPC plug is packaged in roll tape.

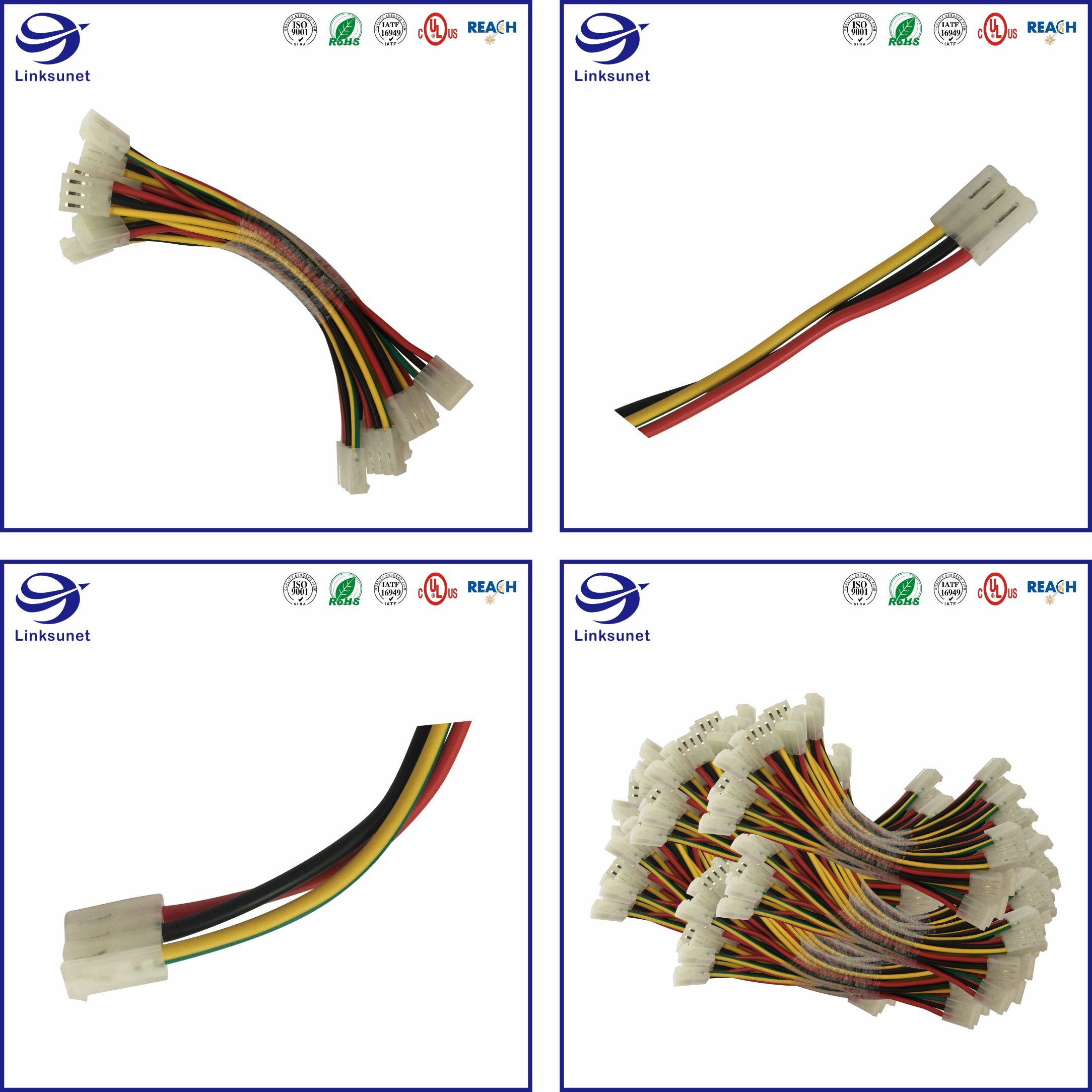

| 1015 16AWG Soldering Wiring Harness with 3.96mm KK 5239 Receptacle
Connectors |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | Molex, LLC |
| Connector Type | Receptacle |
| Series | KK 5239 |
| Contact Type | Male Pin |
| Number of Positions | 2 - 15 |
| Pitch | 0.156" (3.96mm) |
| Number of Rows | 1 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Locking Ramp |
| Color | Natural |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must charge
the sample expense, when under you order form, we return the sample
expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
