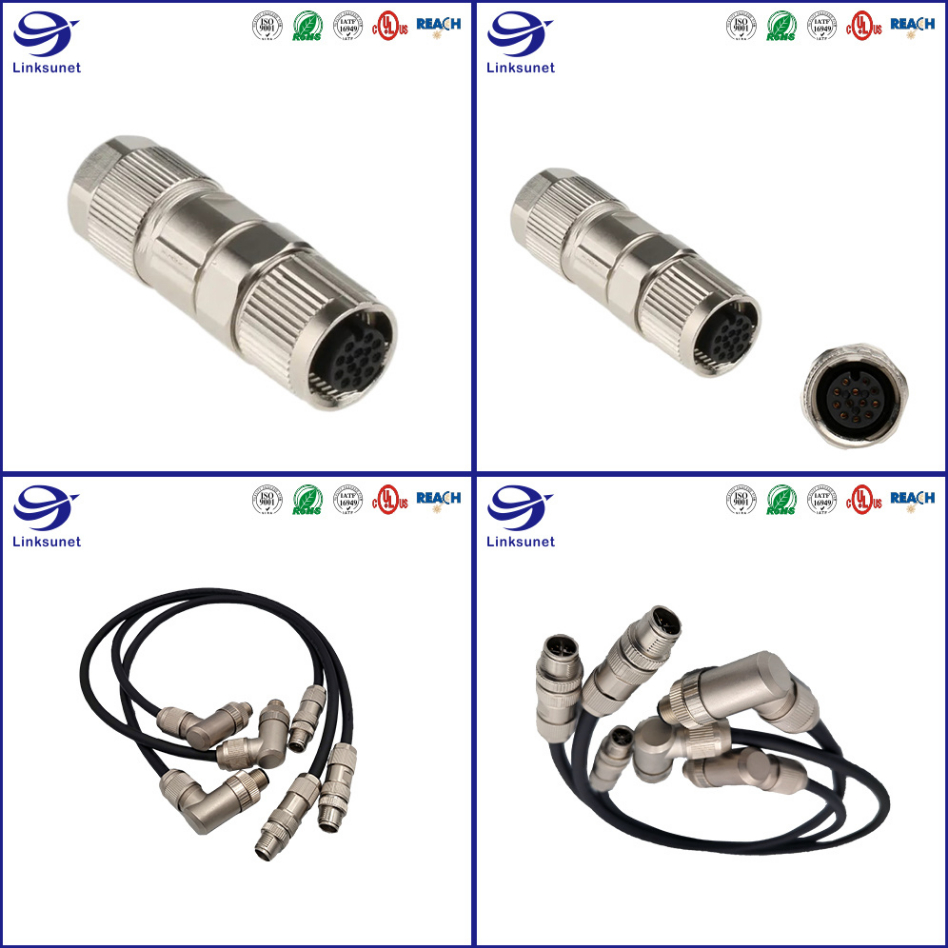

Phoenix Contact M12 circular connector and cable assembly
Phoenix Contact M12 circular connectors and cable assemblies are
available in a variety of
designs, with data transfer rates up to 10Gbps, providing a
comprehensive Connectivity
Solution for devices. These connectors can also be used to transmit
up to 17 bits of signal
and power transmission up to 630V and 16A in minimum mounting
space. The modular
structure of the connector makes it easy to integrate various data,
signal and power pin
assignments into the device concept in a simple and cost-effective
manner.
| Data transmission Wire Harness with SACC Zinc Die Cast IP67
Connector |
| Categories | Connectors, Interconnects |
| Circular Connectors |
| Manufacturer | Phoenix Contact |
| Series | SACC |
| Packaging | Bulk |
| Part Status | Active |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 12 |
| Shell Size - Insert | M12-12 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Axial Pierce |
| Fastening Type | Push-Twist |
| Orientation | A |
| Shell Material | Zinc Die Cast |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Coupling Nut |
| Current Rating (Amps) | 1.5A |
| Voltage Rating | 30VAC/DC |
| Operating Temperature | -25°C ~ 85°C |
| Backshell Material, Plating | Zinc Die Cast, Nickel |
| Cable Opening | 0.213" ~ 0.323" (5.40mm ~ 8.20mm) |
| Contact Material | Copper Zinc |
| Insert Material | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 6-8Weeks (60SET IN STOCK) |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must charge
the sample expense, when under you order form, we return the sample
expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
