Molex's 1.25mm (.049") pitch Mini Mi II™ wire harness system is designed for high-density
applications. Mini Mi II provides the same 1.5 amperes of current as similar 2.0mm (.079")
pitch systems, but in a more compact design. It is available in 2 to 40 circuits in single or dual
row. Molex provides different custom lengths and wire configurations following customer’s
specifications

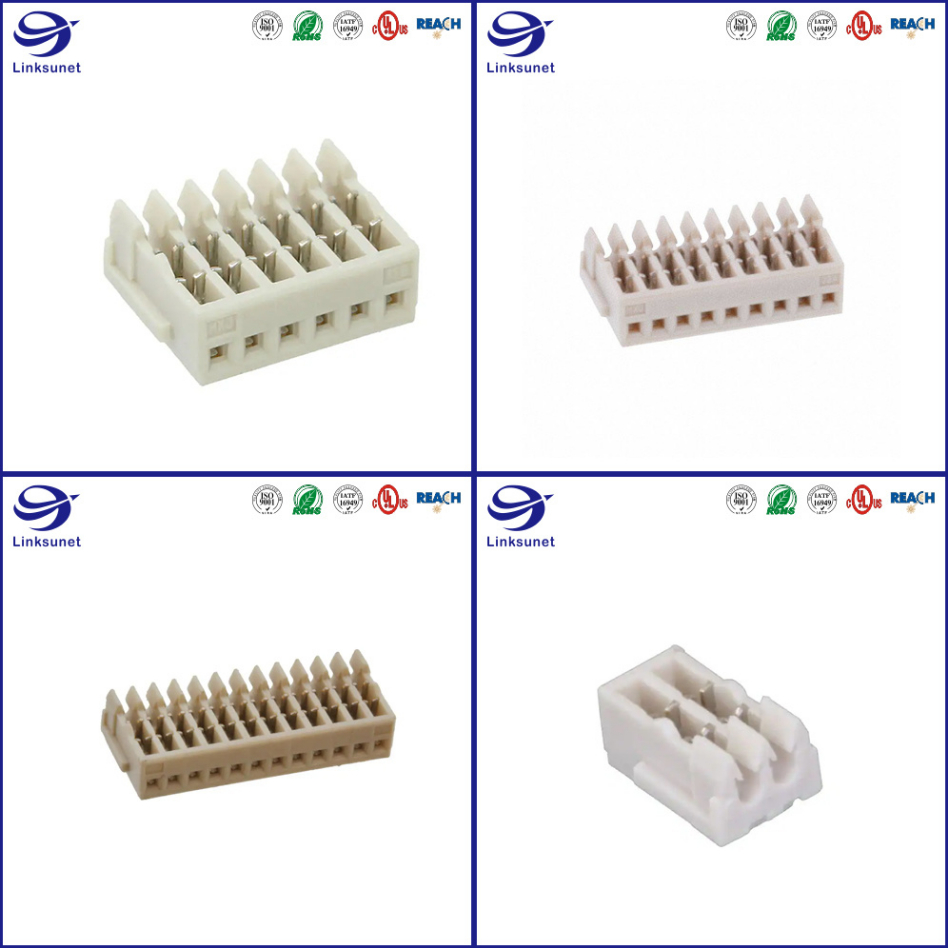

| Mini Mi II 54596 1 Row 1.25mm Connector for Security devices wire
harness |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Free Hanging, Panel Mount |
| Manufacturer | Molex |
| Series | Mini Mi II 54596 |
| Packaging | Bulk |
| Part Status | Obsolete |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 4/9/14/15/16/18 |
| Pitch | 0.049" (1.25mm) |
| Number of Rows | 1 |
| Mounting Type | Free Hanging (In-Line) |
| Cable Termination | IDC |
| Wire Type | Discrete |
| Wire Gauge | 26-28 AWG |
| Contact Finish | Tin |
| Contact Finish Thickness | 35.4µin (0.90µm) |
| Color | Natural |
| Base Part Number | 54596 |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must charge
the sample expense, when under you order form, we return the sample
expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
