Molex KK system
Molex compatible reflow process (RPC) plugs, including signal and
power series, can withstand
welding temperatures up to 260 ° C. The signal application KK 254
connector provides up to 5A
current and 250V voltage for each circuit in a 2.54 mm pitch
package. Power application KK 396
connector can provide 13A current and 600V voltage for each circuit
in a 3.96 mm spacing package.
KK RPC plug is packaged in roll tape.

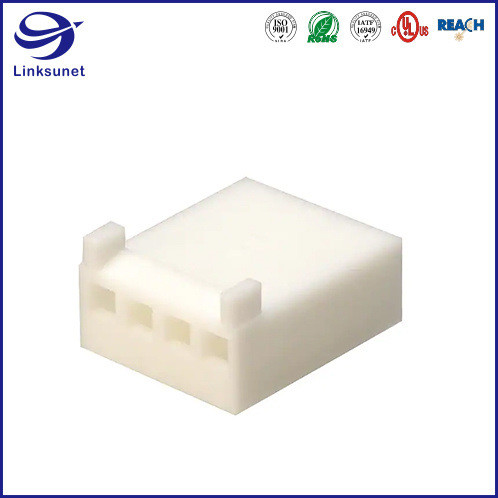

| Locking Ramp KK 2695 2.54mm Molex Cable Connectors for recreational
machines |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | Molex |
| Series | KK 2695 |
| Packaging | Bulk |
| Part Status | Active |
| Connector Type | Receptacle |
| Contact Type | Non-Gendered |
| Number of Positions | 2 - 16 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Locking Ramp |
| Color | White |
| Features | Polarizing Key |
| Note | Contacts Not Included |
| Base Part Number | 2201 |
Documents & Media
| Datasheets | 22-01-3097 |
| 10-07 Prod Spec |
| Mfg CAD Models | 22-01-3097.stp |
| Environmental Information | 22013097 RoHS Cert of Compliance |
| 3D Drawings | 0022013097.pdf |
| Featured Product | KK Interconnect Solutions |
| Power Connectors |
| HTML Datasheet | 10-07 Prod Spec |
| PCN Assembly/Origin | Multiple Devices Location 15/Aug/2019 |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must charge
the sample expense, when under you order form, we return the sample
expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
