Molex SL Modular Connectors
Molex SL (Stackable Linear) Modular Connectors lead the consumer
electronics and
automotive industries with the largest number of variations and
cabling configurations.
The SL series includes new surface mount headers for low-power and
signal wire-to-board
and wire-to-wire applications. The comprehensive SL Modular
Connector System
includes: press-fit compliant-pin, low-profile, latching vertical
and right-angle headers;
five stackable, low-profile housings for male or female crimp
terminals; pre-assembled,
single-piece pin and receptacle connector assemblies for IDT
termination of discrete wire
or ribbon cable and piercing crimp termination of FFC/FPC; single-
and dual-row latching
interim clips for stacking of sub-assemblies to form larger
connectors; and panel mounts
for modular wire-to-wire remote interconnections. SL products are
capable of mating with
select C-Grid and KK products. This product family is suitable for
low-power signal
applications such as computers, medical instruments, and automotive
controls.

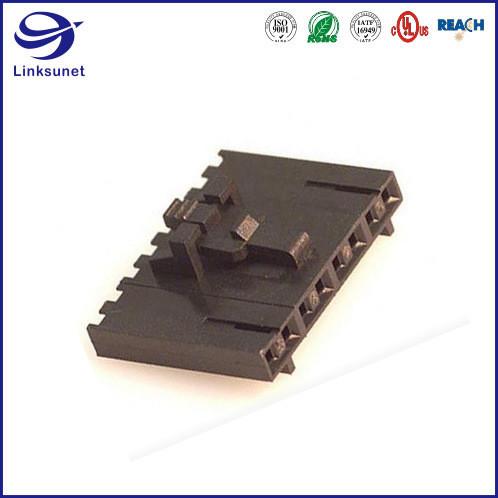

| SL 70066 Receptacle 2.54mm 1 Row connector for Industrial wire
harness |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | Molex |
| Series | SL 70066 |
| Packaging | Bulk |
| Part Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 2-40 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Color | Black |
| Note | Contacts Not Included |
| Base Part Number | 5057 |
Documents & Media
| Datasheets | 50-57-9408 |
| 70058 Series SL Terminal Prod Spec |
| Mfg CAD Models | 50-57-9408.stp |
| Environmental Information | 50579408 RoHS Cert of Compliance |
| Other Related Documents | SL Family Roadmap |
| 70066, 70058 SL Test Summary |
| 3D Drawings | 0050579408.pdf |
| Featured Product | SL Modular Connectors |
| Core Micro Products |
| HTML Datasheet | 70400 Prod Spec |
| 50-57-9408 |
| 70058 Series SL Terminal Prod Spec |
| PCN Assembly/Origin | Multiple Devices Location 15/Aug/2019 |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form, we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must
charge the sample expense, when under you order form, we return the
sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price,
lease tell us in your email so that we will regard you inquiry
priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost
effective for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
