FEATURES
1.Reduced package size is approximately 50% smaller than USCAR
0.64mm (.025") unsealed
connection systems.
2.Hybrid headers and receptacles addresses industry needs for
higher circuit density while
maintaining a small PCB footprint.
3.Orientation features are molded into the header and either
vertical or right-angle orientations
are possible, providing wire-routing and module design flexibility
and retain the header to the
PCB during the soldering process.
4.Board alignment and retention features simplify header PCB
placement and retain header to
PCB during soldering operation(s) and protect soldering joints
during connector mating and
unmating.

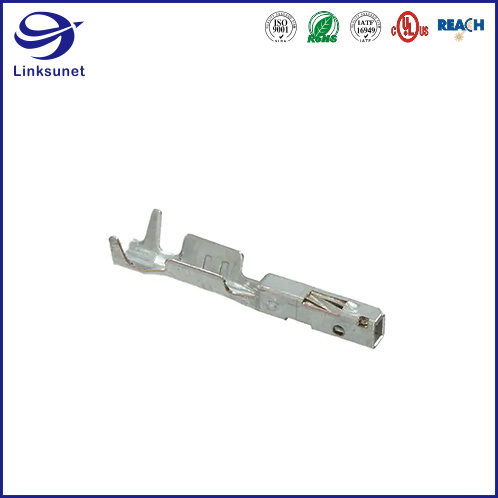

5.Female terminal wire grips for wire-size reduction and weight,
space, and cost savings.
6.Three polarization options provide three discrete mechanical,
visual and colored polarizations.
7.Independent secondary lock (ISL) terminal-retention feature is
molded into the receptacle
housing as one piece for applied cost savings
8.CTX50 terminal wire grip design offers harness manufacturers' the
ability to reduce wire
gauge sizes while maintaining retention strength.

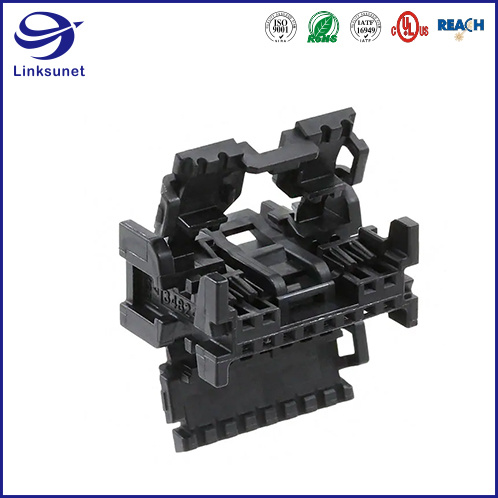

| Mini50 34824 2 Row 2.0mm Molex Cable connector for Car Cameras
Wiring harness |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | Molex |
| Series | Mini50 34824 |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 12 / 16 / 20 / 24 |
| Pitch | 0.079" (2.0mm) |
| Rows | 2 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Color | Black |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must charge
the sample expense, when under you order form, we return the sample
expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
