Characteristic
- Friction lock plug and socket
- Polarizing pin holder back wall, housing and pin
- Twisted PC solder tail
- Various terminal designs with additional contacts
- Right angle and vertical plug
- Top, bottom and right angle PCB sockets
- Ensure safe mating
- Prevent mismatch
- Ensure accurate alignment of PCB
- Suitable for high vibration environment
- Flexible design

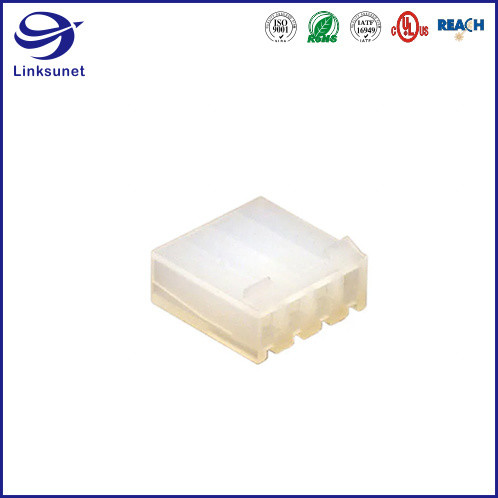

| KK 2139 2 - 24 pin 3.96mm Molex Cable Connectors for Multi function
scanner |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | Molex |
| Series | KK 2139 |
| Packaging | Bulk |
| Part Status | Active |
| Contact Type | Non-Gendered |
| Number of Positions | 2 - 24 |
| Pitch | 0.156" (3.96mm) |
| Number of Rows | 1 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Locking Ramp |
| Color | Natural |
| Note | Contacts Not Included |
| Base Part Number | 000950 |
Documents & Media
| Datasheets | 09-50-3021 |
| Mfg CAD Models | 09-50-3021.stp |
| Environmental Information | 0009503021 RoHS Cert of Compliance |
| Product Training Modules | KK Low Power and Signal Interconnect Family |
| 3D Drawings | 0009503021.pdf |
| PCN Design/Specification | V2 6/6 Nylon Resin Additional Supplier 05/Nov/2014 |
| Featured Product | KK Interconnect Solutions |
| Power Connectors |
| PCN Assembly/Origin | Multiple Devices Production 16/Apr/2017 |
| HTML Datasheet | 09-50-3021 |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must charge
the sample expense, when under you order form, we return the sample
expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
