Hirose Electric DF19 Low Profile Wire-to-PCB Cable Connectors
Hirose Electric DF19 Low Profile Wire-to-PCB Cable Connectors are
industry and market
accepted as "de facto" standard for LCD panel connections (panels
under 12 inches). The
1mm contact pitch, board-to-cable, board-to-FPC, and
board-to-Micro-coaxial cable
connectors allow high-performance for LVDS high-speed differential
signals. The Hirose
DF19 Low Profile Wire-to-PCB Cable Connectors feature a small
configuration for a smaller
footprint on the board, common use of receptacle (accepts plugs
terminated with discrete
wire, FPC, or micro-coaxial cable), uniform external dimensions, a
variety of mounting styles,
and metal grounding plates that connect with the common ground
line.

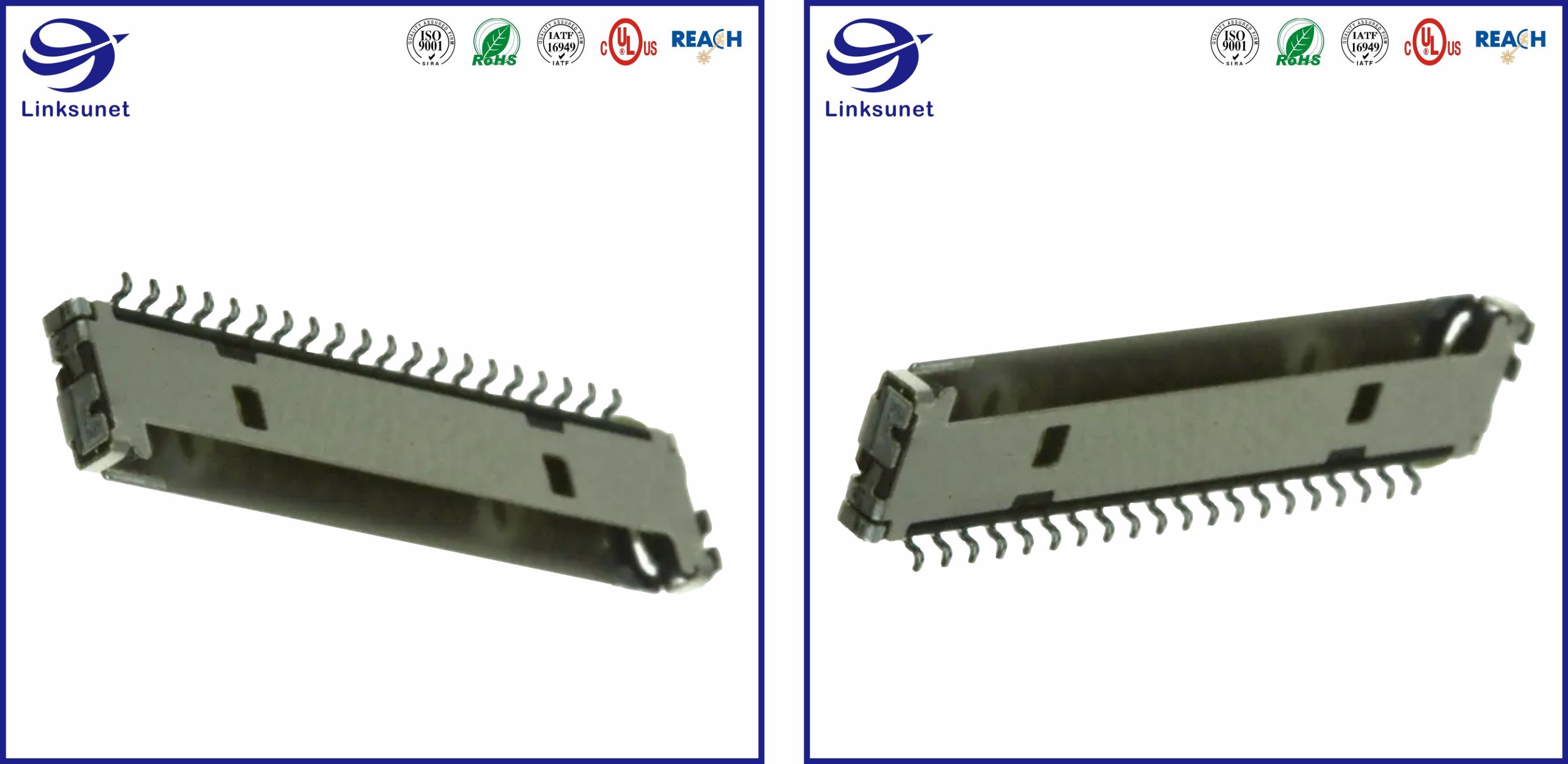

| DF19 1row Friction Lock 1.0mm connector for Digital Cameras wire
harness |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Headers, Male Pins |
| Manufacturer | Hirose Electric Co Ltd |
| Series | DF19 |
| Connector Type | Receptacle |
| Contact Type | Male Pin |
| Number of Positions | 20 |
| Pitch | 0.039" (1.0mm) |
| Rows | 1 |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Insulation Height | 0.065" (1.65mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Post | Tin-Copper |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Glow Wire Compliant, Shielded, Solder Retention |
| Operating Temperature | -35°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Voltage Rating | 100V |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
