TE Connectivity AMPMODU IV & V Connectors
TE Connectivity AMPMODU IV and V Connectors provide a wide variety
of rugged and reliable
wire-to-board interconnections on a modular .100" x .100" (2.54 x
2.54) centerline configuration,
which mate to AMPMODU Mod II shrouded & unshrouded headers with a
.025" (0.64) square post.
The connectors include AMPMODU IV & V wire-applied crimp contacts
and housings with three
levels of contact mating pressures with single and double row
configurations available in .100 CL,
.125 CL, and .150 CL. Complete with a range of accessories
including keying and retention plugs,
this range of receptacles offer reliable and cost effective
wire-to-board connection. Contacts suitable
for wire sizes 20-32AWG (0.032mm2 to 0.56mm2) are available with a
range of plating finishes in
standard or high contact pressure variants.

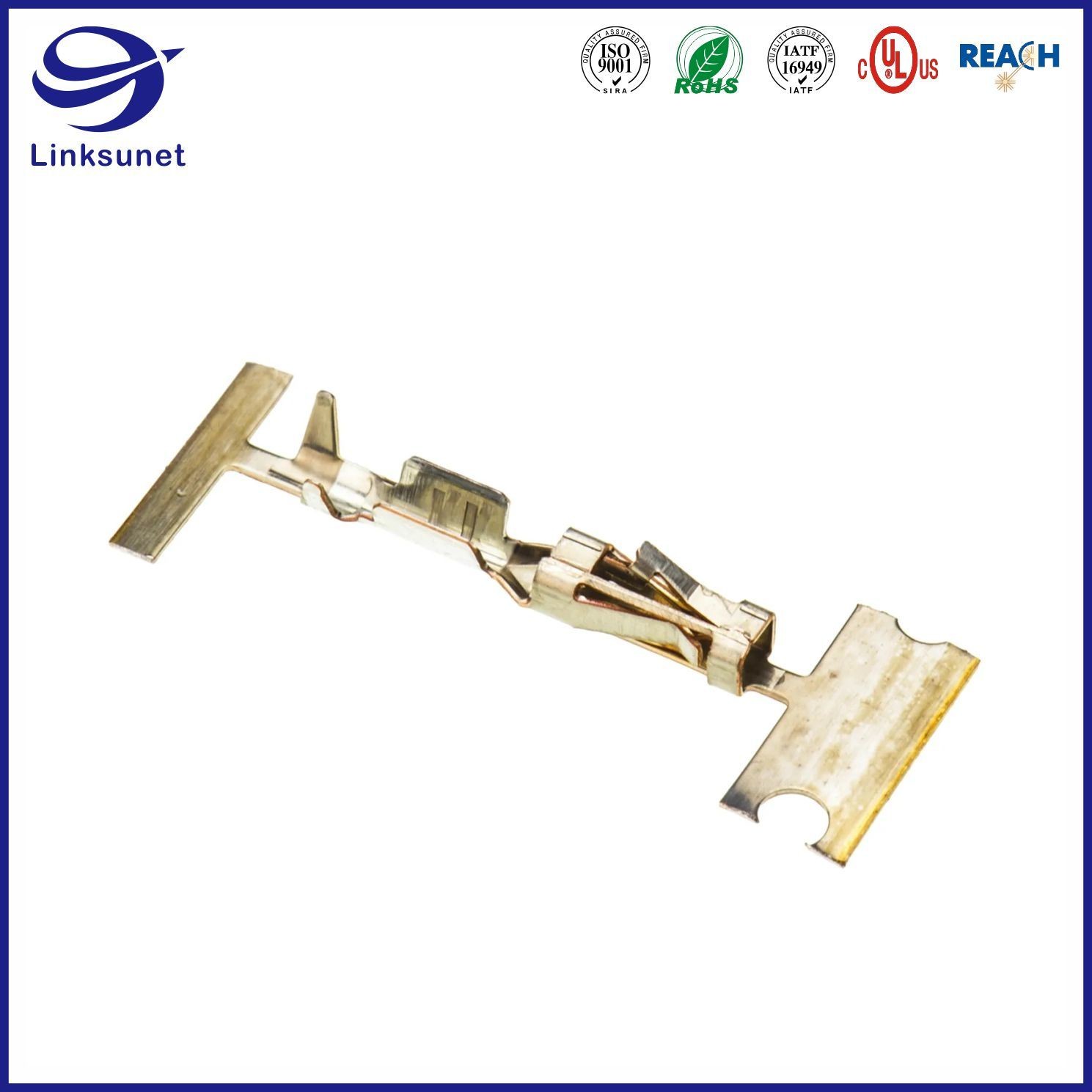

| Ampmodu Short Point Crimp Gold Terminal for Storage equipment Wire
Harness |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Contacts |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | AMPMODU Short Point |
| Pin or Socket | Socket |
| Contact Termination | Crimp |
| Wire Gauge | 22 - 26 AWG |
| Contact Finish | Gold |
| Contact Finish Thickness | 15.0µin (0.38µm) |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must charge
the sample expense, when under you order form, we return the sample
expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
