Our team was founded in October 2010, is a professional design,
production, sales of industrial
wiring harness, cable, connector factory, product applications
involving industrial equipment,
instruments, meters, machinery manufacturing and other industrial
fields.

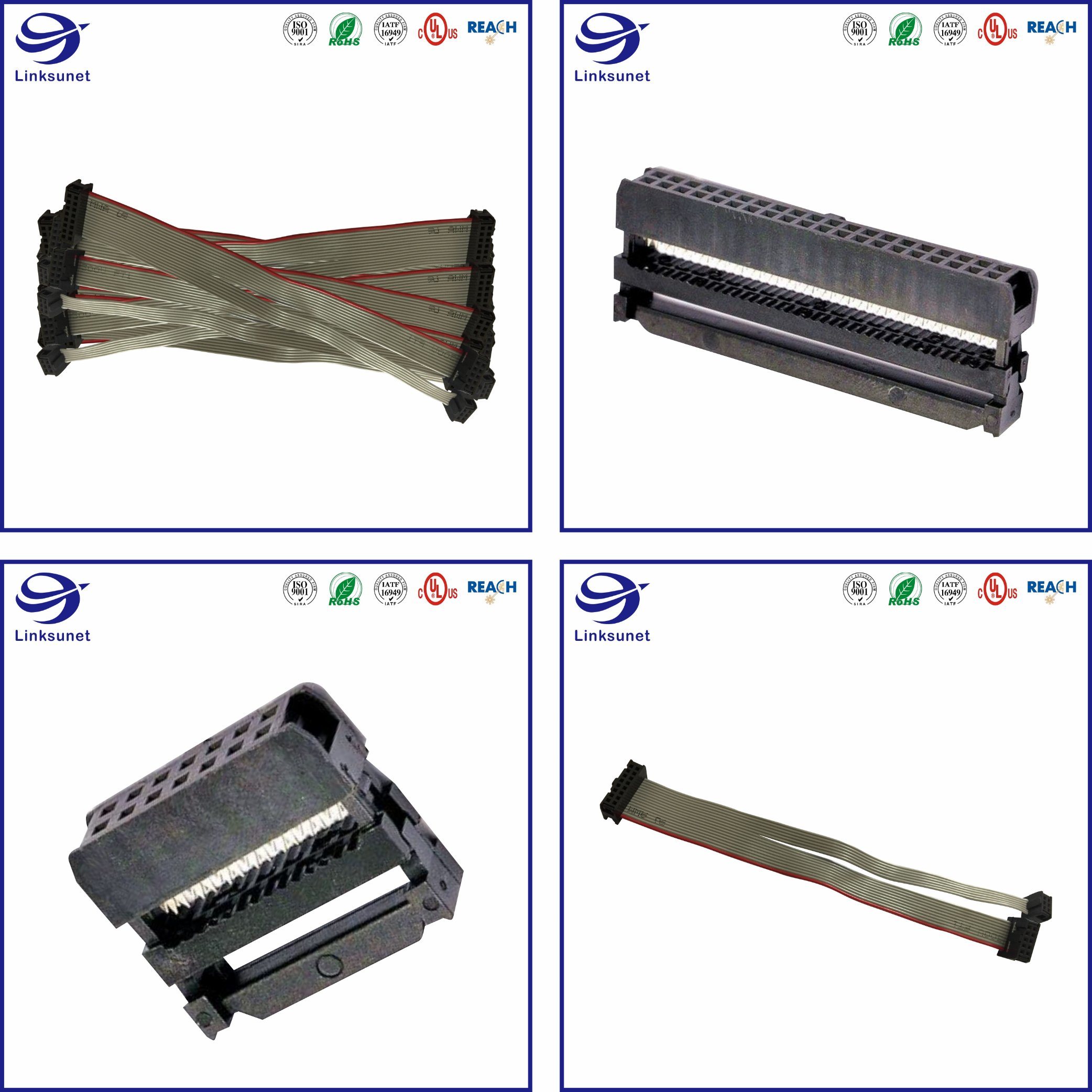

| Industrial Soldering Wire Harness with FC 250V AC 2.54mm connector
add Flat Cable |
| Brand | FC |
| Pins | 6 / 8 / 10 / 14 / 16 / 20 / 26 / 30 / 34 /40 / 50 |
| Color | BK |
| Pitch | 2.54mm |
| Operating temperature | - 25 ºC + 105ºC |
| Rated voltage | 250V AC DC |
| Product Keywords | FC 2.54mm wire harness |
| 2.54mm | A | B | C | D |
| FC-6P | 12.19 | 5.08 | 6.35 | 7.72 |
| FC-8P | | | | |
| FC-10P | 17.27 | 10.16 | 11.43 | 12.8 |
| FC-14P | 22.35 | 15.24 | 16.51 | 17.88 |
| FC-16P | 24.89 | 17.78 | 19.05 | 20.42 |
| FC-20P | 29.97 | 22.86 | 24.13 | 25.5 |
| FC-26P | 37.59 | 30.48 | 31.75 | 33.12 |
| FC-30P | 42.67 | 35.56 | 36.83 | 38.2 |
| FC-34P | 47.75 | 40.64 | 41.91 | 43.28 |
| FC-40P | 55.37 | 48.26 | 49.53 | 50.9 |
| FC-50P | 68.07 | 60.96 | 62.23 | 63.6 |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form, we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must
charge the sample expense, when under you order form, we return the
sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price,
lease tell us in your email so that we will regard you inquiry
priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost
effective for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
