EDAC Rack & Panel Connectors
EDAC Rack and Panel Connectors are industry-standard connectors
with high continuity
contacts. These connectors exhibit a hermaphroditic contact design
for no-fail interconnections.
The Rack and Panel Connectors feature gold over nickel plating for
wire hole, PCB, wire-wrap,
and crimp contacts. The crimp contacts of these Rack and Panel
Connectors are available
pre-installed, separately or on a reel, and ready for automatic
crimping. These connectors
include 516 series, 519 series, 556 series, B01 series, and B57
series. The Rack & Panel
Connectors are available in the sizes of 20 to 120 positions with
actuating screw or locknut
both with polarizing.
| Custom Cabinet Internal Wiring Harness with 516 Plug Rack Panel
Connectors |
| 1 | 516-020-000-302 | 516-020-000-301 | 516-020-000-202 | 516-020-000-201 | 20PIN |
| 2 | 516-038-000-302 | 516-038-000-301 | 516-038-000-202 | 516-038-000-201 | 38PIN |
| 3 | 516-056-000-302 | 516-056-000-301 | 516-056-000-202 | 516-056-000-201 | 56PIN |
| 4 | 516-090-000-302 | 516-090-000-301 | 516-090-000-202 | 516-090-000-201 | 90PIN |
| 5 | 516-120-000-302 | 516-120-000-301 | 516-120-000-202 | 516-120-000-201 | 120PIN |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must charge
the sample expense, when under you order form, we return the sample
expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
PRODUTC FLOW

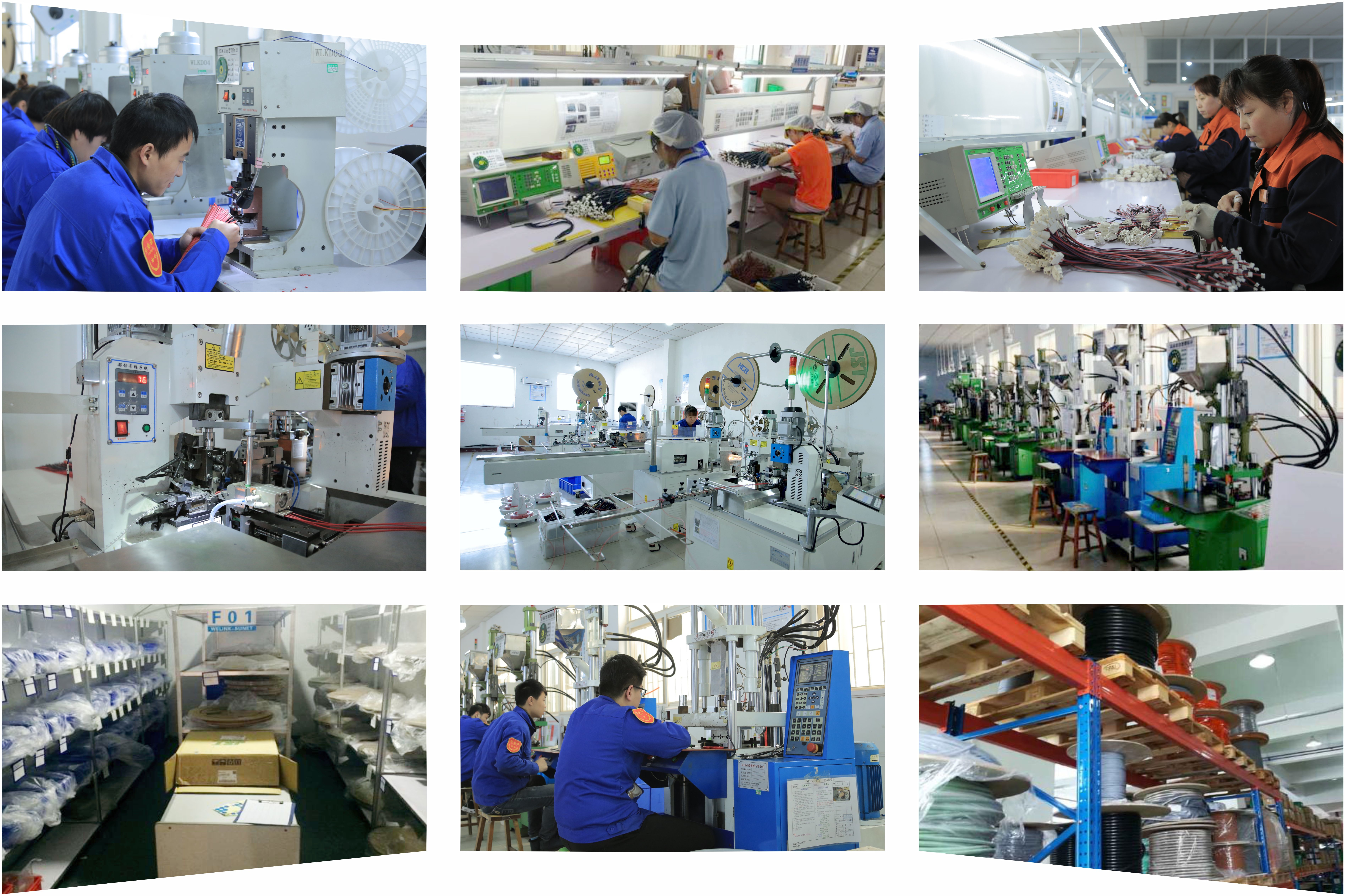

WORKSHOP
CERTIFICATION
PACKING
SHOPPING
PAYMENT
CONTACT US
