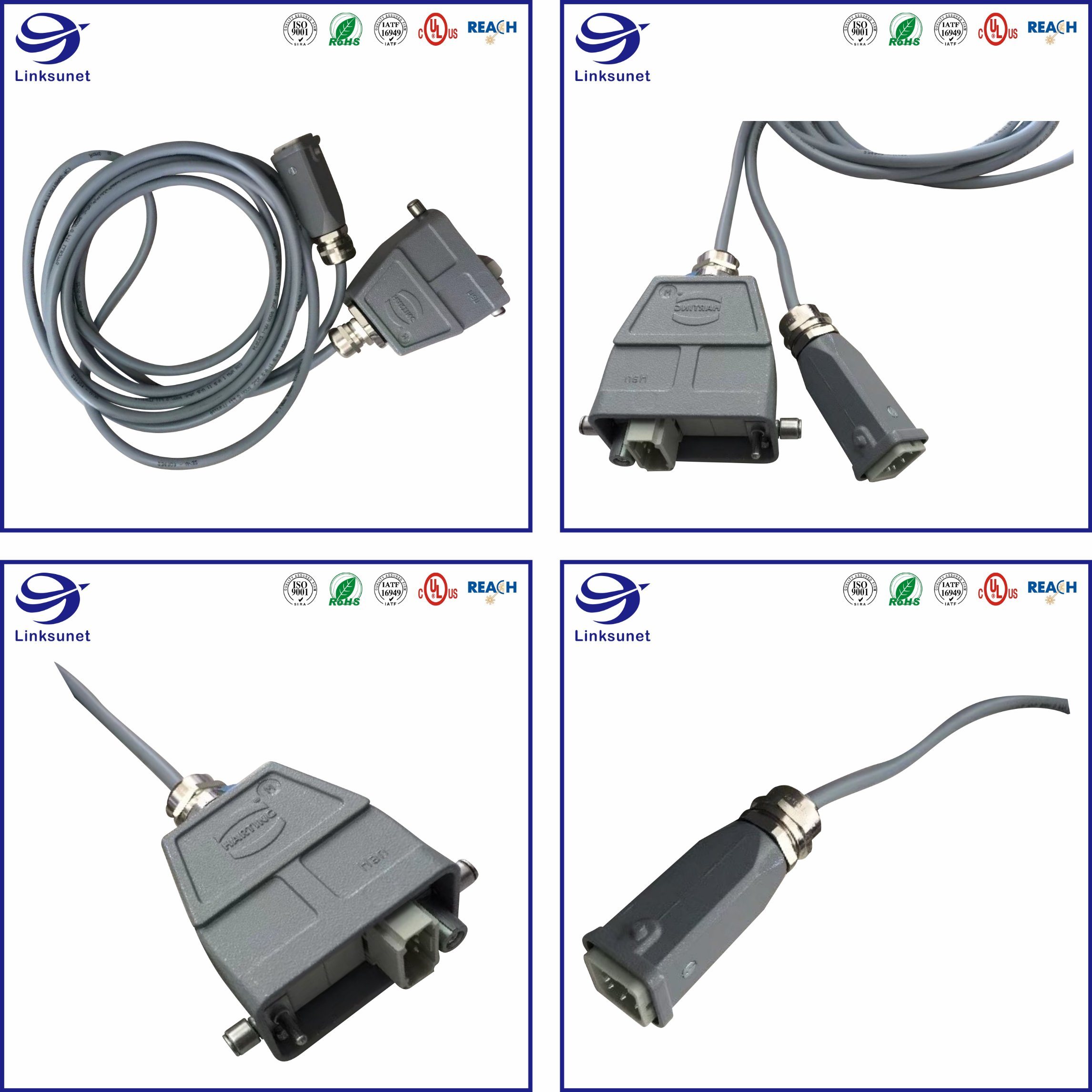

Heavy Duty Wire Harness with Han Q 600V Male PC Gray Connector
Product Description
HARTING Han® Q Connectors
HARTING Han® Q Connectors expands the portfolio of the smallest Han
3A size range.
An area measuring 42 mm² is enough room for 3 power contacts and
the protective earth
contact (Han Q 3/0) or 4 power contacts (Han Q 4/0). This makes
them both the most
powerful in the compact industrial connector class. Both connectors
are used in industrial
environments. They are ideally suited to the needs of the
semi-conductor industry. The
Han Q 3/0 with protective earth contact is designed for 3-phase
earthed networks and is
used in three-phase motors. It can fit all housings in the 3A size,
i.e. all plastic and metal
varieties, EMC and also the extremely robust HPR and stainless
steel housings. The
Han Q 4/0 comes with 4 power contacts and is used to enable
equipment such as ventilators,
fans or extraction units to be connected. Because these consumers
are very common in the
semi-conductor industry, the Han Q 4/0 is the ideal solution to
reduce costs because two of
the consumers can be connected with one connector. The connector is
also ideally suited for
DC applications. However, in this case, it can only be used in 3A
size plastic housings.
| Heavy Duty Wire Harness with Han Q 600V Male PC Gray Connector |
| Categories | Connectors, Interconnects |
| Heavy Duty Connectors - Inserts, Modules |
| Manufacturer | HARTING |
| Series | Han® Q |
| Connector Type | Insert without Contacts |
| Gender | Male |
| Pins | 1-21 |
| Size | 3A |
| Termination Style | Crimp,Push In with Lock |
| Voltage Rating | 600V |
| Current Rating | 10A |
| Operating Temperature | -40°C ~ 125°C |
| Color | Gray |
| Housing Material | Polycarbonate (PC) |
| Contact Material | Copper Alloy |
| Material Flammability Rating | UL94 V-0 |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form, we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must
charge the sample expense, when under you order form, we return the
sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price,
lease tell us in your email so that we will regard you inquiry
priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost
effective for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
