MX150 Gamma Sealed connector system
The Molex mx150 sealed connector system includes pre assembled,
fully wettable
MX150 high performance connectors with smaller package sizes. The
Molex MX150
sealed connector is ideal for SAE - and ISO type cables up to 22.0a
in single and
double row configurations, supporting signals and power
applications from engine
vehicles to off-road construction equipment applications.

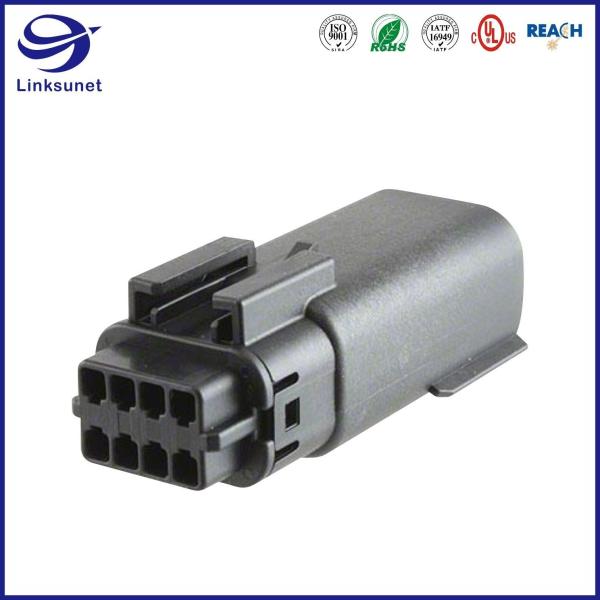

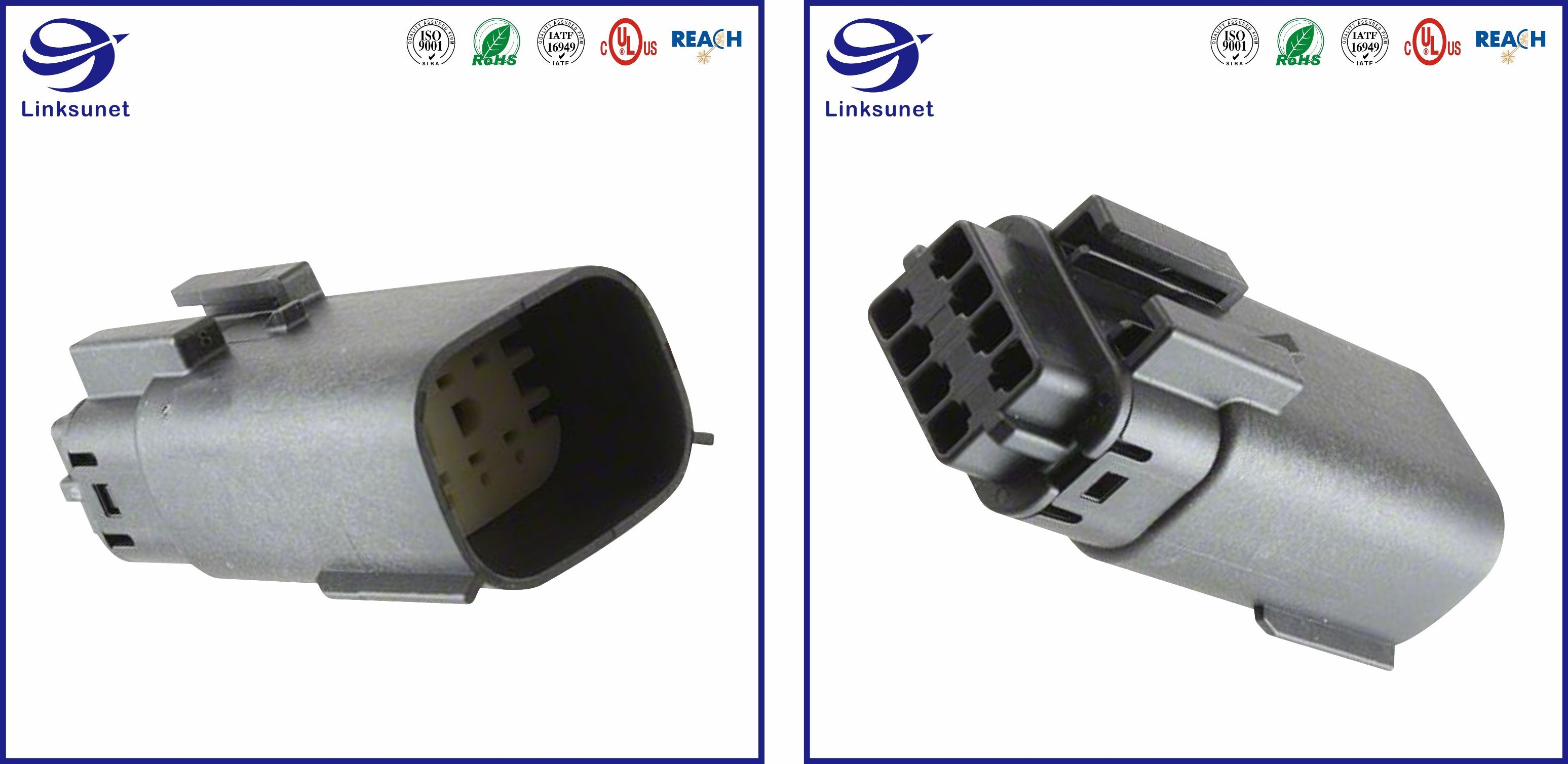

| MX150 33482 Blade Pin 3.5mm 2 row connector for Car Wiring Harness |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | Molex |
| Series | MX150 33482 |
| Packaging | Bulk |
| Part Status | Obsolete |
| Contact Type | Blade Pin |
| Number of Positions | 4 / 6 / 8 / 12 / 16 / 18 / 20 |
| Pitch | 0.138" (3.5mm) |
| Number of Rows | 2 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Locking Ramp |
| Color | Black |
| Features | Sealed |
Documents & Media
| Datasheets | 33472-000 Spec |
| MX150 Blade Datasheet |
| 33482-081 |
| MX150 Blade Sealed Assy Drawing |
| 31300-635 Pkg Spec |
| View More |
| Environmental Information | 33482-0801 RoHS Cert of Compliance |
| PCN Other | Various Series Tooling 27/Aug/2014 |
| PCN Assembly/Origin | 33482 Series 10/Feb/2015 |
| Video File | Molex RF Connectors | Digi-Key Daily |
| Molex - MX150 Unsealed Connection System |
| Molex - Product Spotlight - MX123 Sealed Connection System |
| PCN Obsolescence/ EOL | 33482-08yy 07/Nov/2016 |
| Featured Product | Commercial Vehicle Products |
| HTML Datasheet | 33472-000 Spec |
| 33472-000-000 Prod Spec |
| 33472-100 Appl Spec |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form, we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must
charge the sample expense, when under you order form, we return the
sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price,
lease tell us in your email so that we will regard you inquiry
priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost
effective for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
