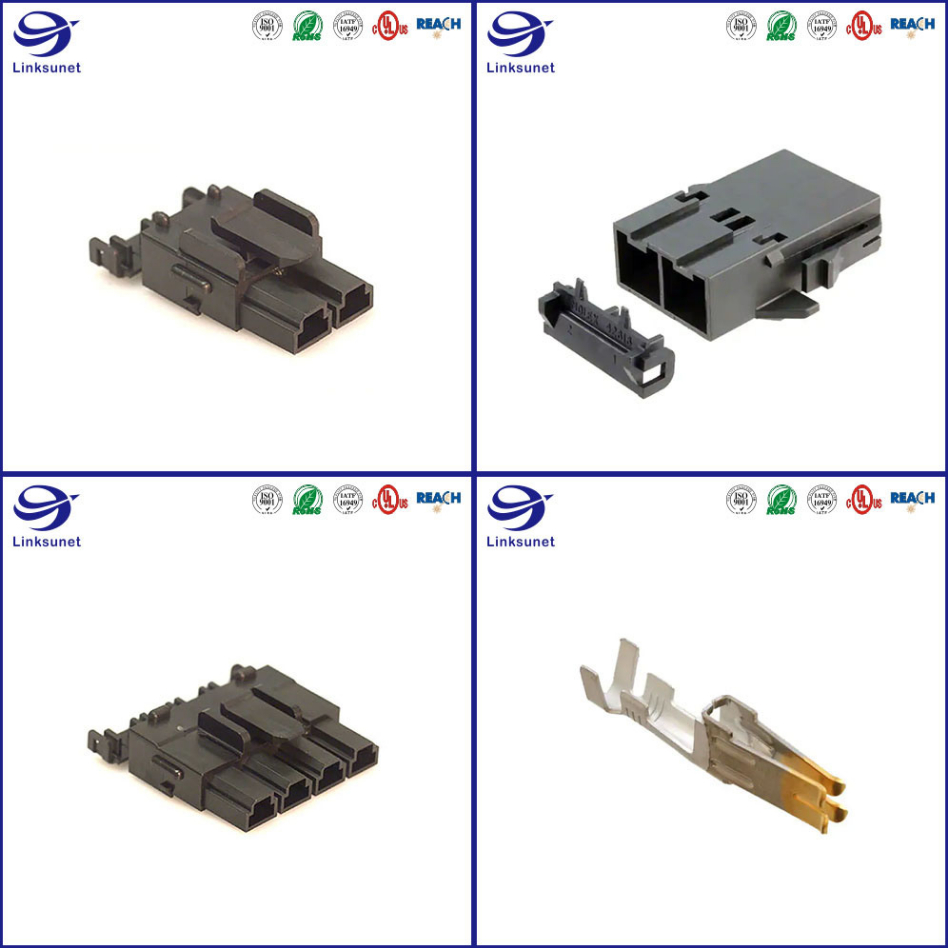

Molex Mini-Fit Sr. ™ Connector
Molex Mini fit Sr ™ The connectors are silver plated or other
designs that can withstand up
to 50.0a current and have superior electrical reliability, which
can significantly reduce the
cost of various applications such as industrial, consumer, power,
medical and business
vehicles. These connectors have a polarized housing to prevent
connector mismatch, the
double beam (female) terminal design has four contacts to ensure
superior contact reliability,
and the terminal position assurance (PTA) positioner on the housing
prevents the terminal
from accidentally screwing out.
| Mini Fit Sr 42815 600V Socket Molex Cable connectors for Trailer
wire Harness |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Contacts |
| Manufacturer | Molex |
| Series | Mini-Fit Sr 42815 |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Type | Power |
| Pin or Socket | Socket |
| Contact Termination | Crimp |
| Wire Gauge | 14-16 AWG |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Base Part Number | 42815 |
Documents & Media
| Datasheets | 42815-001 Series Prod Spec |
| 42815-004x Drawing |
| Product Training Modules | Power Connectors |
| Video File | Mini-Fit Sr |
| Other Related Documents | Mini-Fit Sr Test Summary |
| Environmental Information | 42815-0042 RoHS Cert of Compliance |
| PCN Assembly/Origin | Multiple Devices Supplier Change 23/Jan/2017 |
| HTML Datasheet | 42815-001 Series Prod Spec |
| PCN Other | Multiple Devices Shipping Location 20/Mar/2020 |
| Featured Product | Mini-Fit Sr. Power Connectors |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form, we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must
charge the sample expense, when under you order form, we return the
sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price,
lease tell us in your email so that we will regard you inquiry
priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost
effective for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
