Molex iGrid Connectors
Molex iGrid Wire-to-Board Dual-Row Connectors offer a compact
design and anti-tangle
internal lock for applications requiring good mating retention. The
unique inner lock of iGrid
prevents the wire from getting tangled in the latch, compared to
outer lock types where
such damage can occur. The inner lock also provides space savings,
an audible click, and
a robust design to withstand rugged handling. iGrid connectors are
available in 28AWG
to 22AWG in both straight and right-angle designs, from 10 to 40
circuits.

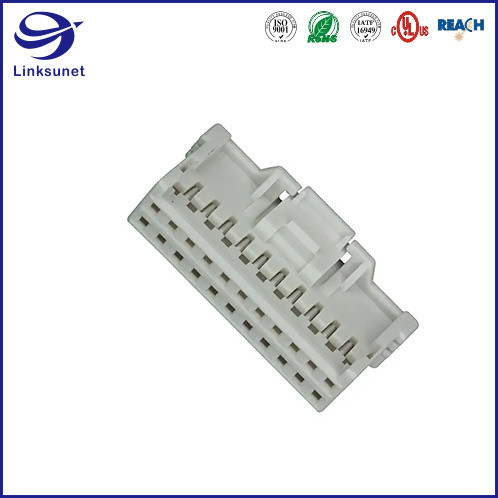

| iGrid 501646 2 row 2.0mm connector for Power controllers Wiring
Harness |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | Molex |
| Series | iGrid 501646 |
| Manufacturer Part Number | 5016462200 |
| Packaging | Bulk |
| Part Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 10-40 |
| Pitch | 0.079" (2.0mm) |
| Number of Rows | 2 |
| Row Spacing | 0.079" (2.0mm) |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Color | Natural |
| Note | Contacts Not Included |
