DF19 series connector has the following characteristics:
1. The circuit board configuration space is small, the thin design
can bear discrete wires,
the thin micro coaxial cable can withstand the thickness of Ø
1.5mm, the maximum
Ø 1.6mm and FPC 1.7mm
2. The connector is universal. The same socket will accept plugs,
FPCs or miniature
coaxial cables terminated with discrete conductors
3. Uniform external dimension. When the terminal is assembled with
discrete wire,
FPC or micro coaxial cable, the external dimension of plug assembly
remains unchanged.
4. Various installation styles, equipment design and installation
methods are: top plate,
offset, reverse installation, offset and vertical installation.
5. The metal grounding plate is connected with the common ground
wire.

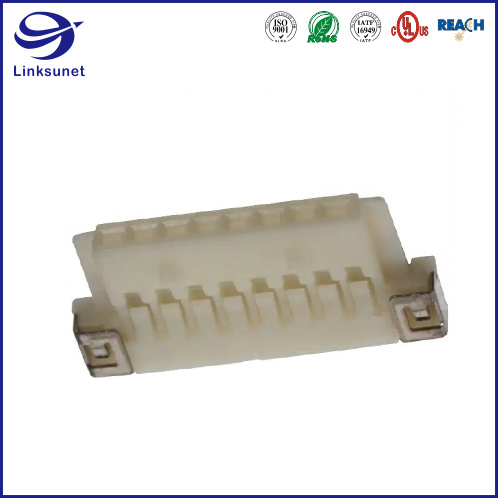

| 1.0mm 1row Plug DF19 Connector for Automobile lamp Wire Harness |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | Hirose Electric Co Ltd |
| Series | DF19 |
| Packaging | Bulk |
| Part Status | Active |
| Connector Type | Plug |
| Contact Type | Female Socket |
| Number of Positions | 8 / 14 / 20 / 30 |
| Pitch | 0.039" (1.0mm) |
| Number of Rows | 1 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Color | Beige |
Documents & Media
| Datasheets | DF19 Series Datasheet |
| DF19G-20S-1C(05) Drawing |
| DF19G-20S-1C(05) Spec |
| Product Training Modules | Wire-to-Board Connector |
| Mfg CAD Models | DF19G-20S-1C(05).igs |
| DF19G-20S-1C(05).stp |
| HTML Datasheet | DF19 Series Datasheet |
| PCN Design/Specification | Mult Devs Plating Spec chg 19/MAR/2020 |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
