Characteristic
1.Up to 17a gold plated contacts up to 1
2.Rated voltage: 250VAC
3.16awg to 20awg (1.25mm2 to 0.50mm2)
4.8,14,23,35 hole arrangement
5.PCB installation
6.Rectangular thermoplastic shell
7.Integrated pin for insertion
8.Integrated wedge lock to confirm contact alignment and maintain
correct position

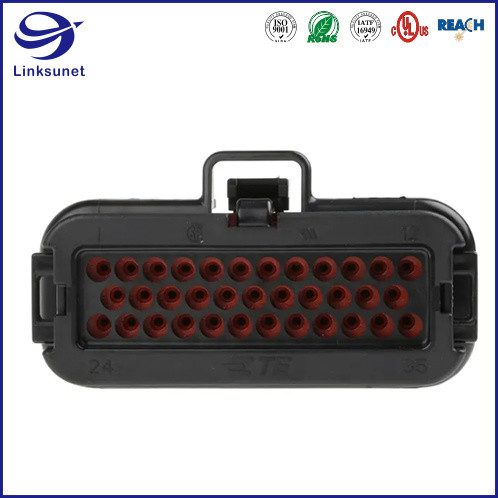

| Ampseal 35pin 3row Female Connectors for Automobile Wire Harness |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | TE Connectivity Deutsch Connectors |
| Series | AMPSEAL |
| Connector Type | Plug |
| Contact Type | Female Socket |
| Number of Positions | 35 |
| Pitch | 0.157" (4.0mm) |
| Rows | 3 |
| Row Spacing | 0.157" (4.0mm) |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Wire Gauge | 16-20 AWG |
| Contact Finish | Tin |
| Fastening Type | Latch Lock |
| Color | Natural |
Documents & Media
| CONNECTOR PLUG | 776164-1 |
| CONNECTOR TERMINAL | 770520-1 |
| CONNECTOR COVER | 776463-1 |
| SGL WIRE SEAL | 828904-1 |
| CAVITY PLUG 2.5MM SYST DIA 5.4MM | 828922-1 |
Single wire use
| 1 | FLRY-A/B 0.35/0.5/0.75/1.5/2.5/4MM² |
| 2 | AVE/AVSS/AVESSX 0.3/0.5/0.8/1.5/2.5 |
| 3 | TXL/GXL 22AWG/20AWG/18AWG/16AWG/14AWG |
