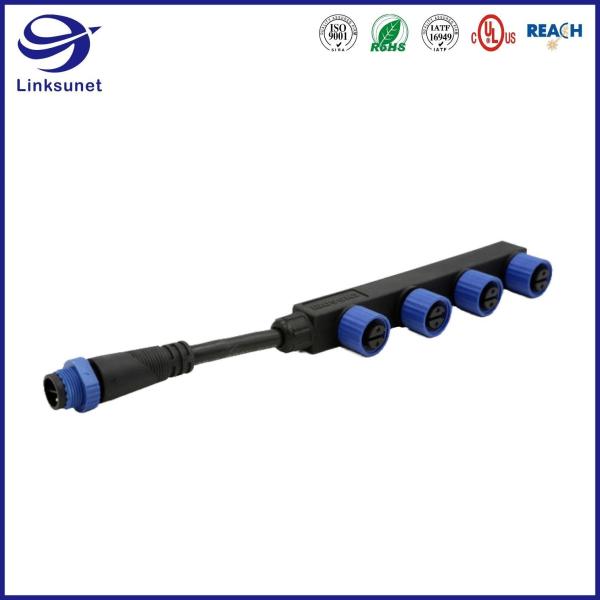

M15 IP68 300V Waterproof Circular Connectors for LED Street Lamp
Product Description
Advantages
A. Obvious marks to show screw down
There is obvious mark to show when you mating. It's ok when the
arrow mark on the male plug is
within the arrow marks range on the female plug.
B. No water storageInside screw nut doesn't glued with housing, so there is no hidden
water storage. To make sure
waterproof function.
C. Insert patented Netsok contacts (Contact parts are composed of
highly reliable Netsok contacts
and solid pins )
| M15 IP68 300V Waterproof Circular Connectors for LED Street Lamp |
| Brand | JYK |
| Series | M15 |
| Pin | 2002/4/5 |
| Degree Protectior | IP68 ( Mated ) |
| Mechanical Opreating | 500mating cycles |
| Operating Temperature | -45ºC~105ºC |
| Voltage Rating | 300V |
| Rated Current ( 40ºC ) | 10A |
| Contact | Brass , Gold Plating |
| Material of Housing | PA |
M15 Series related models waterproof circular led connectors
48002113-01-XXX 48002413-01-XXX 48003113-01-XXX 48003413-01-XXX
48004113-01-XXX
48004413-01-XXX 48004413-01-XXX 48005113-01-XXX 48005413-01-XXX 48002412-01-XXX
48003413-01-XXX 48004413-01-XXX 48005413-01-XXX
48012110-01 480012110-01 48012110-03 48112110-01 48112110-02
48112110-03
48012110-11 48012110-12 48012110-13 48112110-11 48112110-12
48112110-13
48012111-01 48012111-02 48112111-01 48112111-02 48012111-11
48012111-12
48112111-11 48112111-12
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form, we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must charge
the sample expense, when under you order form, we return the sample
expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
