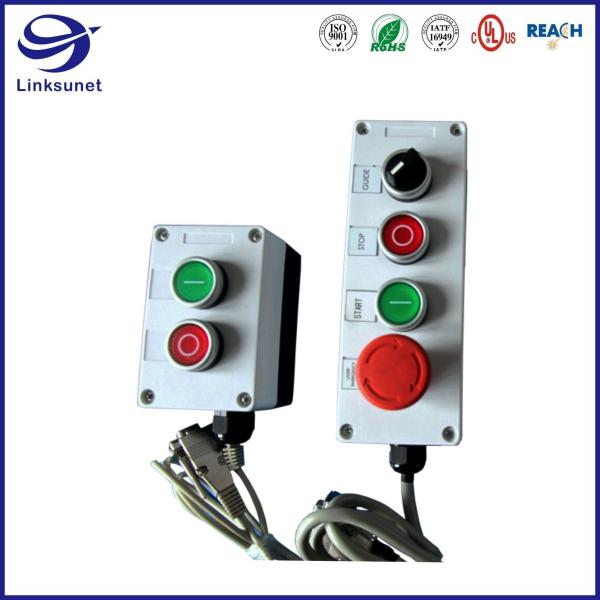

| Medical equipment wire harness with IP65 22mm Waterproof Button box |
| Name | Button box |
| Texture of material | ABS |
| Performance | Waterproof |
| Marking contact | Always open |
| Colour | Gray |
| Open hole | 22MM |
| Pin | 2-6P |
| Waterproof grade | IP65 |
| Weight | 0.25g |
| M12 A CODE | FEMALE AND MALE | Unshielded, fully shielded | PUR,PVC | 18AWG-26AWG | |
| M12 B CODE | FEMALE AND MALE | Unshielded, fully shielded | PUR,PVC | 18AWG-26AWG | |
| M12 D CODE | FEMALE AND MALE | Unshielded, fully shielded | PUR,PVC | 18AWG-26AWG | |
| M12 X CODE | FEMALE AND MALE | Unshielded, fully shielded | PUR,PVC | 18AWG-26AWG | |
| UL1015 600V,105C PVC | 10AWG | UL1007 300V 80C PVC | 10AWG | U1569 300V 105C PVC | 10AWG |
| 12AWG | 12AWG | 12AWG |
| 14AWG | 14AWG | 14AWG |
| 16AWG | 16AWG | 16AWG |
| 18AWG | 18AWG | 18AWG |
| 20AWG | 20AWG | 20AWG |
| 22AWG | 22AWG | 22AWG |
| 24AWG | 24AWG | 24AWG |
| 26AWG | 26AWG | 26AWG |
| 28AWG | 28AWG | 28AWG |
| 30AWG | 30AWG |
| UL2464 PVC CABLE 300V,80C | 30AWG*XC, XP | UL2517 PVC CABLE 300V 105C | 30AWG*XC, XP | UL20276 PVC CABLE 30V,80C | 30AWG*XC, XP |
| 28AWG*XC, XP | 28AWG*XC, XP | 28AWG*XC, XP |
| 26AWG*XC, XP | 26AWG*XC, XP | 26AWG*XC, XP |
| 24AWG*XC, XP | 24AWG*XC, XP | 24AWG*XC, XP |
| 22AWG*XC, XP | 22AWG*XC, XP | 22AWG*XC, XP |
| 20AWG*XC, XP | 20AWG*XC, XP | 20AWG*XC, XP |
| 18AWG*XC, XP | 18AWG*XC, XP | 18AWG*XC, XP |
| 16AWG*XC, XP | 16AWG*XC, XP | 16AWG*XC, XP |
| XC = number of cores, XP = number of twisted pairs |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must charge
the sample expense, when under you order form, we return the sample
expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
