1.Proven box contact
This connector was developed with the same box-shaped contact
design used successfully
in the NH connectors. The reliable VH connector can be used in a
wide variety of applications,
from low-voltage, low-current signal circuits to power supply
circuits having a relatively large
capacity.
2.Compact connector with a large capacity
Even though this connector has a large current carrying capacity
(10A), it is compact, with a
mounting height of 16.5mm (.650").
3.Secure contact and mounting
The housing has a lock mechanism which prevents the connector from
coming loose due to
vibration. The mechanism also prevents misinsertion (misalignment
or reverse insertion).

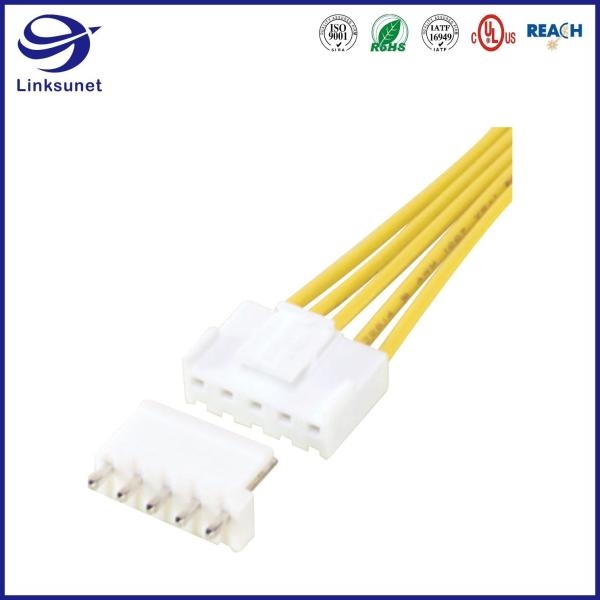

| VH Receptacle 1Row 3.96mm JST Terminal Connector for automobile
Wire Harness |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | JST Sales America Inc. |
| Series | VH |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 2 - 11 |
| Pitch | 0.156" (3.96mm) |
| Rows | 1 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Color | Natural |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form, we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our
product’s quality. We are must
charge the sample expense, when under you order form, we return the
sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price,
lease tell us in your email so that we will regard you inquiry
priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the
most convenient or cost
effective for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place
the order.
